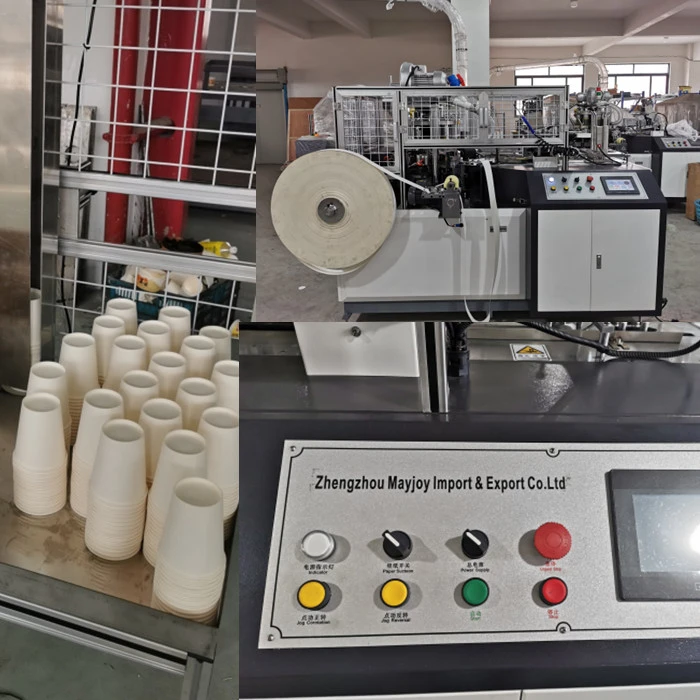

Qog'oz stakan shakllantirish mashinasi

Qog'oz chashka shakllantirish mashinasi qog'oz stakan ishlab chiqarish uchun ishlatilishi mumkin, uni qahvaxona, restoran yoki uy uchun turli o'lchamdagi chashka tayyorlash uchun ishlatishingiz mumkin. Turli o'lchamlar uchun siz turli xil qoliplarni almashtirishingiz kerak, bitta mashina bitta qolip bilan jihozlangan bo'lishi kerak.

Ta'rif

Qog'oz stakan shakllantirish mashinasi

Paper Cup Forming Machine

Qog'oz stakan shakllantirish mashinasining tavsifi:

Qog'oz chashka shakllantirish mashinasi qog'oz stakan ishlab chiqarish uchun ishlatilishi mumkin, uni qahvaxona, restoran yoki uy uchun turli o'lchamdagi chashka tayyorlash uchun ishlatishingiz mumkin. Turli o'lchamlar uchun siz turli xil qoliplarni almashtirishingiz kerak, bitta mashina bitta qolip bilan jihozlangan bo'lishi kerak.

Paper Cup Forming Machine

Qog'oz stakan shakllantirish mashinasining texnik parametri:

Model: MJ-C12H

Paper Cup Size RANGE: 2 12OZ

Tezlik: 90100pc/min

Qog'oz stakan ustki diametri: Min 45 mm Maks 104 mm

Qog'oz chashka pastki diametri: Min 35mmMaks 75mm

Qog'oz stakan balandligi: Min 35 mm Maks 115 mm

Raw material: 180350gsm, single or double PE coating paper

General power: 11 Kw

Electricity: 380V 3 phases

Air consumption: 0.2 cbm/min

Weight: 3000 kg

Paper Cup Forming Machine

Paper Cup Forming Machine

Qog'oz stakan shakllantirish mashinasining xususiyati:

1. Paper cup bottom sealing by Bank Brand,original switzerland hot air ceramic heating core.

2. It is easy to make cups of different size by changing moulds.

3. Cup side sealing by ultrasonic.

4. Double PE coating paper cups for cold drink as well as hot drink.

5. With our unique original designed bottom knurling system, single shaft, Korea type, this ensures the low leaking ratio and high quality of paper cups.

6. With unique single shaft design, the drive system is conducted by the stable gear system,it would be more stable when machine running at a high speed.

7. With automatic lubricating system, it will automatic lubricating to every moving parts when machine runs.

8. Every cam will be harden to ensure it can run for a long long time.

9. Machine is designed with double turning plate

10. Equipped with automatic cup collecting stacking and counting system.

11.  Bottom paper we have a special pre-feeding system, so the bottom paper feeding is "0" waste.

12. Adopt the SIEMENS PLC micro computer system and also equipped with SIEMENS touch screen for easy and visible operation.

13. The upgraded gear box for longer life span.

14. Optional quality checking system

 Paper Cup Forming Machine

Qog'oz stakan shakllantirish mashinasining to'plami:

 Paper Cup Forming Machine

Qog'oz stakan shakllantirish mashinasining tegishli mahsuloti:

Paper Cup Forming Machine


Bizning qog'oz stakan shakllantirish mashinasi bo'yicha xizmatimiz:

We will, without charge, offer replacement for defective parts which is caused by product quality in one year. Lifelong service is offered with cost charge after one year.And we can send technician for installation and training at the cost of buyer.


Agar sizni qiziqtirsa, biz bilan bog'lanishga xush kelibsiz!
